Cat5e UTP Patch Cable

The Cat5e UTP (Unshielded Twisted Pair) Patch Cable is a fundamental networking cable that plays a crucial role in modern data communication systems. It is designed based on the Category 5e standard, which is an enhanced version of the Category 5 standard, offering improved performance and reliability for data transmission.

PRODUCT NAME	CONDUCTOR	JACKET	INSULATION	OD	CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤)	LENGTH
AWG	NO. OF PAIRS(mm)	MATERIAL
CAT5E UTP	24AWG	7/0.20BC	OFC/CCA	PVC/LSZH	HDPE	5.5	84.2	1-30m
CAT5E UTP	24AWG	7/0.18BC	OFC/CCA	PVC/LSZH	HDPE	5.5	84.2	1-30m
CAT5E UTP	26AWG	7/0.16BC	OFC/CCA	PVC/LSZH	HDPE	5.0	135	1-30m
CAT5E UTP	28AWG	7/0.12BC	OFC/CCA	PVC/LSZH	HDPE	5.0	214	1-30m

Key Features

• Compliance with Cat5e Standard: The cable complies with the Cat5e standard, which ensures a high level of performance in data transmission. It is capable of providing a bandwidth of up to 350 MHz, enabling it to support data transfer rates of up to 1 Gbps. This makes it suitable for a wide range of network applications, including high-definition video streaming, online gaming, and large file transfers.

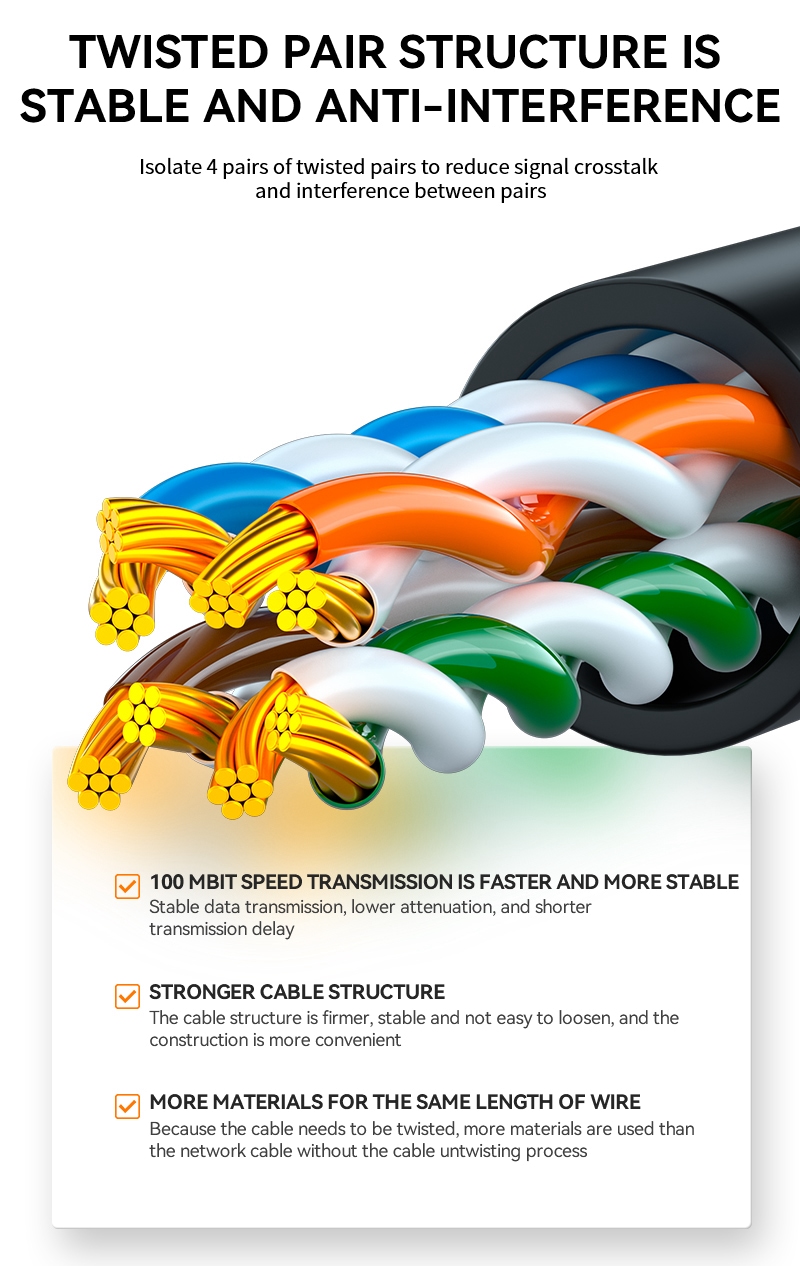

• Unshielded Twisted Pair Design: The UTP design features multiple pairs of copper wires that are twisted together. The twisting of the wires helps to reduce electromagnetic interference (EMI) and crosstalk, which are common issues in data transmission. Each pair of wires is twisted at a specific pitch, and the different pairs have different twist rates to further minimize interference.
• High-Quality Conductors: Cat5e UTP patch cables are typically made of high-quality copper conductors. Copper is chosen for its excellent electrical conductivity, which allows for efficient transmission of electrical signals. The use of high-quality copper ensures low resistance and minimal signal loss, resulting in a clear and stable data connection.
• Durable Outer Jacket: The cable is protected by a durable outer jacket, usually made of polyvinyl chloride (PVC) or other similar materials. The outer jacket provides mechanical protection to the internal wires, preventing them from being damaged by abrasion, moisture, and other environmental factors. It also helps to maintain the integrity of the cable during installation and long-term use.
• Flexible and Easy to Handle: Cat5e UTP patch cables are relatively flexible, making them easy to install and route in various network setups. They can be bent and twisted without significant damage to the internal structure, allowing for easy connection and configuration in different environments. The cables are available in various lengths to meet different installation requirements.

Applications

• Home Networks: In home settings, Cat5e UTP patch cables are widely used to connect computers, laptops, gaming consoles, smart TVs, and other network-enabled devices to a home router or switch. They provide a reliable and high-speed connection for activities such as streaming online content, video conferencing with family and friends, and online gaming.
• Office Networks: In office environments, these patch cables are essential for building local area networks (LANs). They are used to connect individual workstations, printers, scanners, and other office equipment to the network infrastructure, such as switches and routers. This enables seamless communication and data sharing among employees, facilitating efficient business operations.
• Educational Institutions: Schools and universities use Cat5e UTP patch cables to set up computer labs, classrooms, and campus-wide networks. The cables provide a stable and high-speed connection for students and teachers to access educational resources, conduct online research, and participate in e-learning activities.
