Lan Cable for Outdoor

Cat6 uTP lan cable Double Jacket for Outdoor

Category: Lan Cable

CAT6 UTP (Unshielded Twisted Pair) Lan Cable with double jacket is specifically designed for outdoor use, offering enhanced durability and protection against environmental factors. This cable is ideal for situations where reliable network connectivity is required in outdoor settings, such as in campus networks, outdoor surveillance systems, and industrial environments. The double jacket provides additional protection against UV radiation, moisture, and physical damage, ensuring long-lasting performance even in harsh conditions. PRODUCT NAME CONDUCTOR JACKET INSULATION OD CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤) LENGTH AWG CONDCUTOR(mm) MATERIAL CAT 6 UTP 24AWG 1/0.53 OF-C PVC/FRPE/LSZH HDPE 6.1 86.2 305m/Box CAT 6 UTP 23AWG 1/0.56 OF-C PVC/FRPE/LSZH HDPE 6.1 74.3 305m/Box CAT 6 UTP 23AWG 1/0.57 OF-C PVC/FRPE/LSZH HDPE 6.1 70.08 305m/Box Key Features: ● Frequency: 250 MHz, providing ample bandwidth for high-speed data transmission. ● Transmission Speed: Supports 1000BASE-T (Gigabit Ethernet), ensuring fast and efficient data transfer rates. ● Available Length: 305 meters (1000 feet), suitable for long-distance networking within outdoor settings. ● Conductor: 24AWG (American Wire Gauge)

EXPLORE MORE

CAT5E uTP Lan Cable roHS PVC double jacket for Outdoor

Category: Lan CableMOQ: 1000 Pieces

Outdoor Lan Cable CAT5E Price Switch is four pairs of UTP CMR cable, suitable for outdoor aerial and pipe, can prevent moisture intrusion. The performance meets the requirements for the above cat5e in ANSI/TIA/EIA-568.In order to make the twisted pair in the movement of the wire will not break, except for the skin protective layer, the external PE also has a certain toughness. Our factory also supply Patch Cable and Flat Network Cable as well as Telephone Cable . PRODUCT NAME CONDUCTOR JACKET INSULATION OD CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤) LENGTH AWG NO.OFPAIRS(mm) MATERIAL CAT5e UTP 26AWG 1/0.40 OF-C PVC/FRPE/LSZH HDPE 4.6 145.5 305m/Box CAT5e UTP 24AWG 1/0.45 OF-C PVC/FRPE/LSZH HDPE 5 109.5 305m/Box CAT5e UTP 24AWG 1/0.50 OF-C PVC/FRPE/LSZH HDPE 5.2 101.2 305m/Box CAT5E Lan Cable Product Information: 1. Frequency – 100 MHz 2. Transmission Speed – 1000BASE-TX 3. Available Length – 305M ( 1000ft ) 4. Condcutor- 24AWG (1/0.5) (America wire gague), bare copper 5. Cable Construction – Shielded Or Unshielded 6. Jacket- PVC or LSZH 7. Working Temperature: -15℃~+75℃ 8. Install – Used indoor, in-wall and in the ceiling Applications: Computers, routers, VoIP phones, IP cameras, printers

EXPLORE MORE

24AWG Solid Bare Copper CAT5E Outdoor Bulk Cable

Category: Lan CableMOQ: 1000 Pieces

24AWG Solid Bare Copper CAT5E Lan Cable is four pairs of UTP CMR cable, suitable for outdoor aerial and pipe, can prevent moisture intrusion. The performance meets the requirements for the above Cat5E Cable in ANSI/TIA/EIA-568. In order to make the twisted pair in the movement of the wire will not break, except for the skin protective layer, the external PE also has a certain toughness. Our factory have many other Lan Cable , for example CAT6 Lan Cable which can support 250Mhz bandwith and CAT7 Lan Cable with can support 600Mhz bandwith. PRODUCT NAME CONDUCTOR JACKET INSULATION OD CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤) LENGTH AWG NO.OFPAIRS(mm) MATERIAL CAT5e UTP 26AWG 1/0.40 OF-C PVC/FRPE/LSZH HDPE 4.6 145.5 305m/Box CAT5e UTP 24AWG 1/0.45 OF-C PVC/FRPE/LSZH HDPE 5 109.5 305m/Box CAT5e UTP 24AWG 1/0.50 OF-C PVC/FRPE/LSZH HDPE 5.2 101.2 305m/Box CAT5E Lan Cable Product Information: 1. Frequency – 100 MHz 2. Transmission Speed – 1000BASE-TX 3. Available Length – 305M ( 1000ft ) 4. Condcutor- 24AWG (1/0.5) (America wire gague), bare copper 5. Cable Construction – Shielded Or Unshielded 6. Jacket- PVC or LSZH 7. Working Temperature: -15℃~+75℃ 8. Install – Used indoor, in-wall and in the

EXPLORE MORE

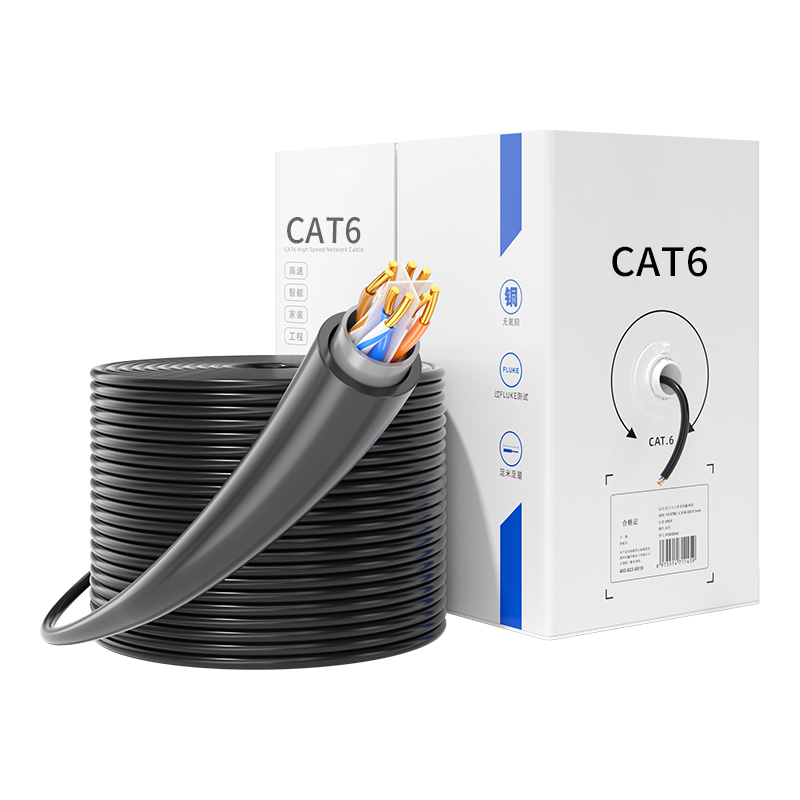

Cat6 UTP LAN cable 1000ft network cable for Outdoor

Category: Lan CableMOQ: 50 KilometerPrice: $148

The diameter of the Cat6 Network Cable must reach 0.56mm. A thicker core can increase the signal transmission cross-section and meet the transmission requirements of gigabit network speeds. Oxygen-free copper also has super anti-oxidation ability, which can effectively extend the service life of the network cable, which can generally be used for 10 years. All products are described truthfully and there are no fakes. If you need to issue a formal invoice, quality escort, shopping worry-free! Presenting different services for you; 100% quality assurance, leading sales of the whole network, more new products waiting for you to buy! PRODUCT NAME CONDUCTOR JACKET INSULATION OD CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤) LENGTH AWG CONDCUTOR(mm) MATERIAL CAT 6 UTP 24AWG 1/0.53 OF-C PVC/FRPE/LSZH HDPE 6.1 86.2 305m/Box CAT 6 UTP 23AWG 1/0.56 OF-C PVC/FRPE/LSZH HDPE 6.1 74.3 305m/Box CAT 6 UTP 23AWG 1/0.57 OF-C PVC/FRPE/LSZH HDPE 6.1 70.08 305m/Box Quick Details Place of Origin: Shenzhen, China Brand Name: OEM or ODM Model Number: CAT6 SFTP 23AWG CABLE Frequency: 1000 Length: 305m/Customized Length Conductor Material: 100% Bare CopperJacket Material: PVC LSZH Available Color: OEM Available Applic

EXPLORE MORE

Outdoor Cable 1000ft ftp CAT5E Lan Cable

Category: Lan CableMOQ: 1000 Pieces

Nowadays, CAT5E Lan Cable are rarely seen on the market. The diameter of Cat5E Cable is 24awg, about 0.5mm. There are many types of Cat5E Patch Cable on the market, including 0.35, 0.4, 0.45, 0.5, 0.51, if the quality of the line is good and can pass the Fluke test, the diameter of the line must reach 0.5MM, and the mark of the sPatch Cable Cat5e line is “CAT5e”. ”Category 5e” refers to Ethernet Cable Cat5E UTP-Unshielded Twisted Pair and Category 5 shielded twisted pair. Unshielded twisted pair cable is composed of multiple twisted pairs and a plastic sheath. Category five refers to the five different quality levels defined by the International Electrical Industry Association for twisted-pair cables. PRODUCT NAME CONDUCTOR JACKET INSULATION OD CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤) LENGTH AWG NO.OFPAIRS(mm) MATERIAL CAT5e UTP 26AWG 1/0.40 OF-C PVC/FRPE/LSZH HDPE 4.6 145.5 305m/Box CAT5e UTP 24AWG 1/0.45 OF-C PVC/FRPE/LSZH HDPE 5 109.5 305m/Box CAT5e UTP 24AWG 1/0.50 OF-C PVC/FRPE/LSZH HDPE 5.2 101.2 305m/Box 1. Frequency – 100 MHz 2. Transmission Speed – 1000BASE-TX 3. Available Length – 305M ( 1000ft ) 4. Condcutor- 24AWG (1/0.5) (America wire gague), bare copper 5. Cable Construct
