Cat6 UTP Flat Cable

The Cat6 UTP (Unshielded Twisted Pair) Flat Cable is a popular and reliable networking cable that plays a crucial role in modern data communication systems. It is designed to transmit data signals with high efficiency and accuracy, making it suitable for a wide range of applications.

PRODUCT NAME	CONDUCTOR	JACKET	INSULATION	OD	CONDUCTOR RESISTANCE AT 20°C(Ω/KM,≤)	LENGTH
AWG	CONDCUTOR(mm)	MATERIAL
CAT6 UTP FLAT	28AWG	7/0.127BC	OFC/CCA	PVC/LSZH	HDPE	2.2*7.2	214	1-30m
CAT6 UTP FLAT	28AWG	7/0.12BC	OFC/CCA	PVC/LSZH	HDPE	2.2*7.2	214	1-30m
CAT6 UTP FLAT	30AWG	7/0.10BC	OFC/CCA	PVC/LSZH	HDPE	1.5*6.0	340	1-30m
CAT6 UTP FLAT	32AWG	7/0.08BC	OFC	PVC/LSZH	HDPE	1.5*6.0	532	1-30m

Key Features

• Category 6 Standard: It complies with the Category 6 standard, which ensures a bandwidth of up to 350 MHz. This enables it to support data transfer rates of up to 1 Gbps, meeting the requirements of most common network applications such as internet browsing, file sharing, and video streaming.

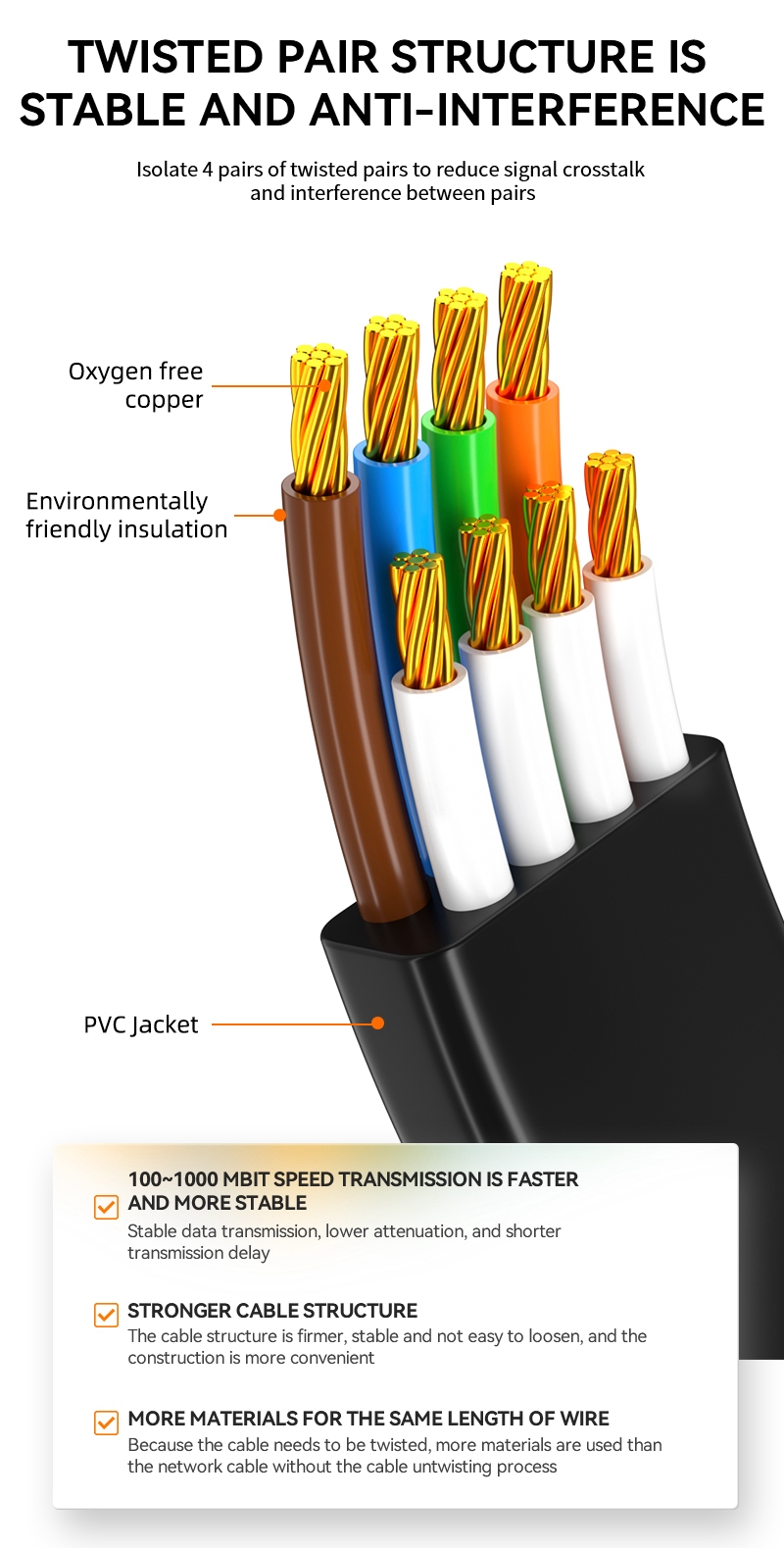

• Unshielded Twisted Pair Design: The cable consists of four pairs of copper wires that are twisted together. The twisting helps to reduce crosstalk and electromagnetic interference (EMI), improving the signal quality and integrity. The unshielded design makes the cable more flexible and cost-effective compared to shielded cables, while still providing sufficient protection for most indoor networking environments.
• Flat Cable Structure: The unique flat shape of the cable offers several advantages. It is easier to install and manage, as it can be easily routed through tight spaces, such as under carpets or along walls. The flat design also allows for neater cable arrangements, reducing clutter and making it more aesthetically pleasing in home and office settings.
• Durable and Flexible: The Cat6 UTP Flat Cable is typically made of high-quality materials, with a durable outer jacket that protects the internal wires from abrasion, moisture, and other environmental factors. The cable is also flexible, allowing for easy bending and shaping during installation without sacrificing its performance.

Applications

• Home Networks: It is commonly used in home networking setups to connect computers, laptops, gaming consoles, smart TVs, and other network-enabled devices to a router or switch. It provides a reliable and cost-effective solution for creating a wired network for seamless internet access and data sharing within the home.
• Small Office and SOHO Environments: In small offices and small office/home office (SOHO) environments, the Cat5e UTP Flat Cable is an ideal choice for connecting computers, printers, and other office equipment to build a local area network (LAN). It enables efficient communication and data transfer for day-to-day business operations.
• CCTV and Surveillance Systems: The cable can be used in closed-circuit television (CCTV) and surveillance systems to transmit video and control signals from cameras to recording devices or monitors. Its high bandwidth and reliable signal transmission ensure clear and stable video footage for security purposes.
